China Factory Price 4*8Ft 5*10Ft Automatic Tool Changers Woodworking Linear ATC CNC Router Machine AKM2030C with Syntec Control

China Factory Price 48Ft 510Ft Automatic Tool Changers Woodworking Linear ATC CNC Router Machine AKM2030C with Syntec Control

Condition New

Views 3 today

Seller FezaMarket

Rating 0.0 ★

FezaMarket

3 views in the last 24 hours

Condition:

New

$12,376.29

Accepted:

Size:

Currently unavailable

About this item

Buyer must read!!!

Please don't make payment directly before contacting us.

1- Machine Price may vary depending on exchange rate or different configurations, so to avoid misunderstandings, pls contact us for inquire about the current price before placing an order. Thanks so much ~

2- About shipping cost: the machine is too big , it will be delivered by sea/train. the shipping cost in aliexpress is not actual because that`s for air delivery.

Meanwhile, the different configuration will affect delivery cost, to avoid misunderstand, please double check shipping cost before you pay.

And we need to know the seaport/train station near your city if you wanna we provide shipping service.

Contact Information:

Sales manager: Jenny Yin

Whatsapp/Wechat: +86 18353150175

Email: [email protected]

Main features of wooden door atc cnc router AKM1325C.

1) Air cooling spindle: Good quality HQD/ imported Italy HSD atc air cooling spindle.Well-known brands, long working life,

low noise, strong cutting ability to ensure the long time working.

2) Taiwan Syntec control system with handwheel: Easy operation. Support offline operation, more stable.

3) Taiwan Delta / Japan Yaskawa 750w servo motor and drivers: High-performance drive motor to ensure that the machines high speed and accuracy.

4) High accuracy linear rail 25mm from Taiwan: Smooth and precise transmission,low noise,and lifetime is 10 times longer than normal guide rails.

5) Vacuum & T-slot combined worktable: Can both absorb big materials by vacuum power and fix small materials by clamps.

6) Helical rack transmission: Ensure fast speed,big loading capacity, long lifetime, and it ensures the machine more stable.

7) Linear type Tool changer: With 8pcs tool holders and 8pcs tool forks, can save working time and will work so convenient.

Technical data of woodworking atc cnc router machine 1325 2030 2040.

Description	Parameters
X,Y Working Area	13002500250mm
Z Working Area	250mm
Resolution	0.01mm
Lathe Structure	Seamless welded steel structure
X,Y Structure	Rack and pinion, gear drive, Taiwan 25mm square guide rails
Z Structure	Taiwan TBI ball screw, Taiwan 25mm square guide rails
Max. Idling Speed	40m/min
Spindle	9.0kw China HQDair cooling ATC spindle
Spindle Speed	0-18000r/min, variable speed
Working Voltage	220V/380V,3PH, 50/60Hz
Motor and driver	Taiwan Delta 750w servo motor and drivers
Working Mode	Servo motor
Command	G code (HPGL,U00,mmg,plt)
Operating System	Taiwan Syntec 60W-E
Diameter of Cutter	Φ1-φ22
Cooling Mode	Air-cooling
Dust-collect Function	Yes, 3.0kw dust collector
Work Holding	T slot&Vacuum table with 4 zones
Tool Magazine	8-slot Tool Magazine with 8 ISO 30 tools
Net Weight	1500KG

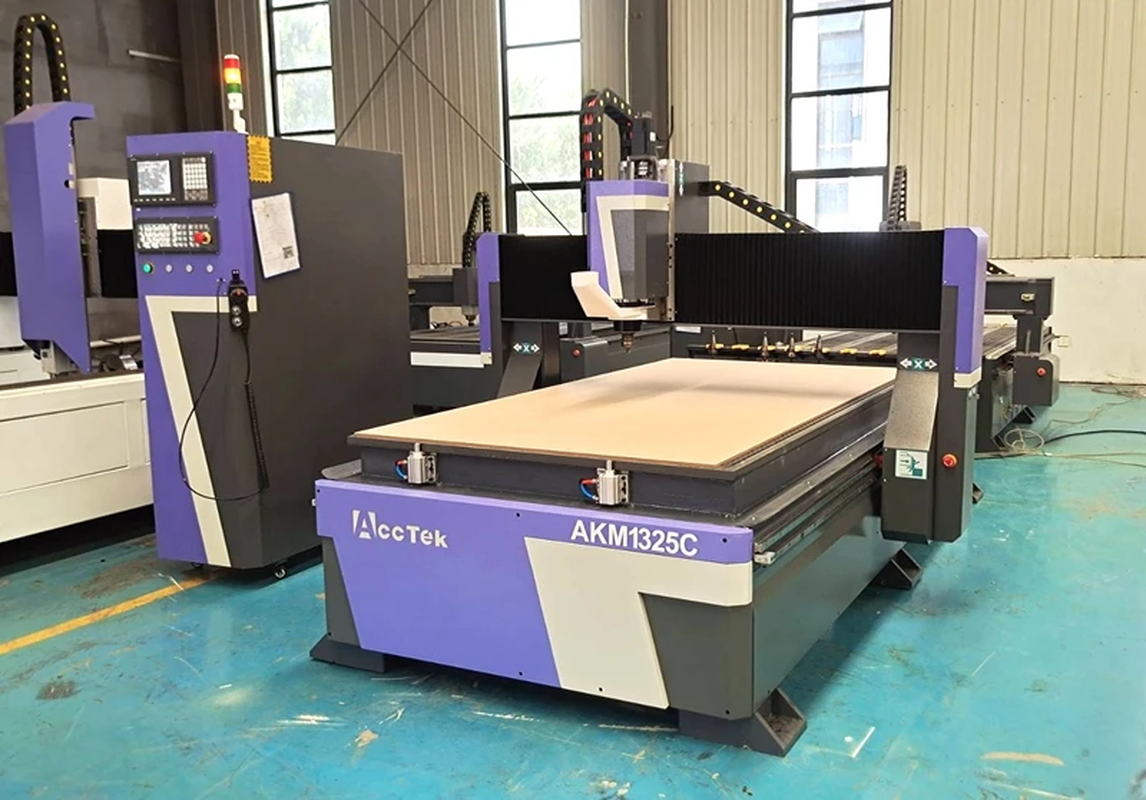

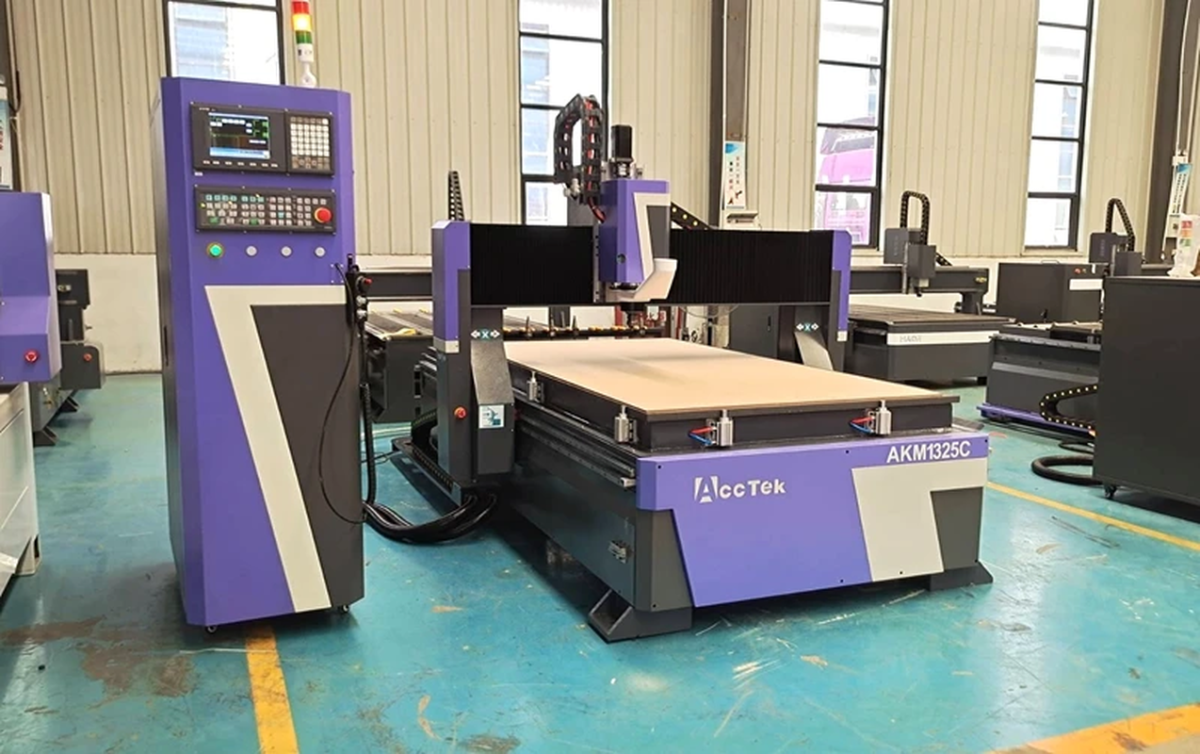

Details show of atc wood cutting cnc router machine AKM1325C.

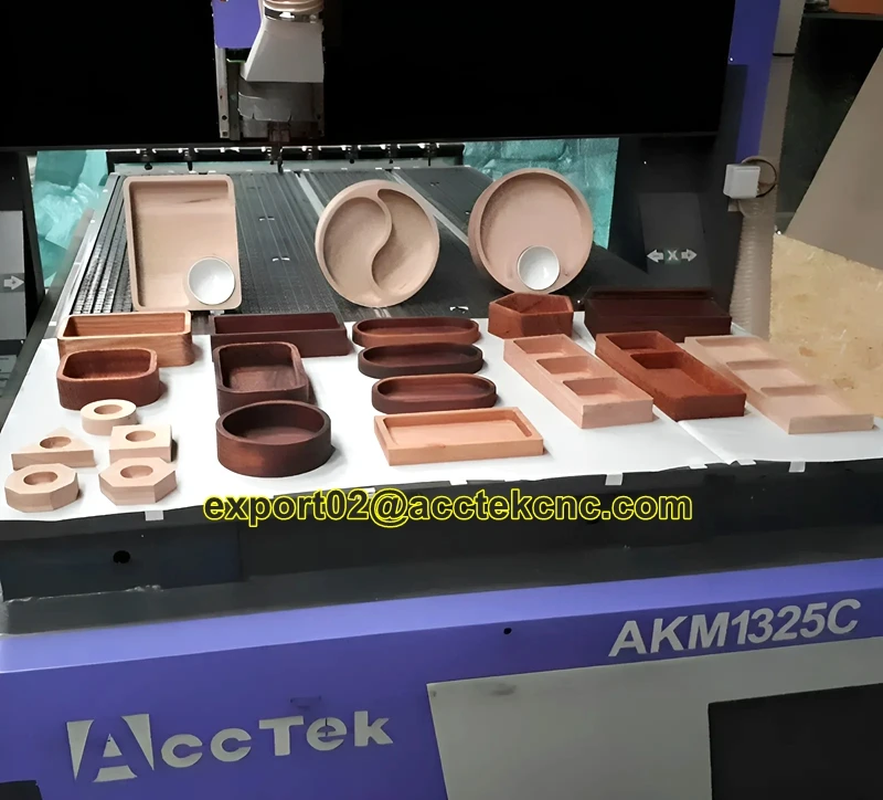

Applications of wood cabinet engraving atc cnc router 1325 1530 2030.

1) Wood furniture industry.

Doors; Cabinets; Tables; Chairs. Wave plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2) Advertising industry

Signage; Logo; Badges; Display board; Meeting sign board; Advertising filed, sign making, acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3) Die industry

A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand , plastic sheeting, PVC pipe, and other

non-metallic mold.

4) Artwork and Decoration

Wood crafts; gift box; jewelry box, etc.

5) Others

Relief sculpture and 3D engraving and Cylindrical object, etc.
